Driveaway Antenna

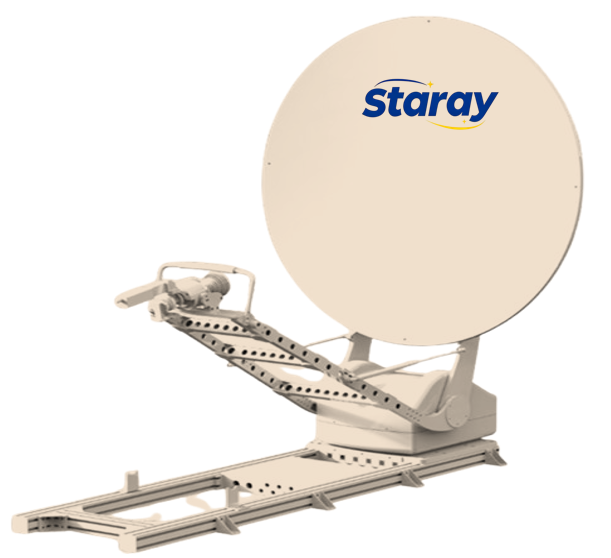

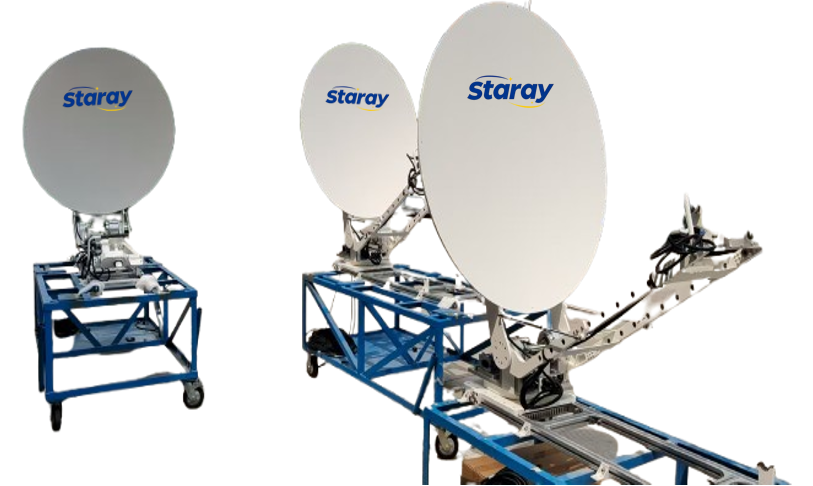

1.2m C Ku Ka Band Driveaway Antenna

Product Composition² Feed subsystem: Ring focus reflector (Carbon fiber), Ka Band feed horn

Product Details

Product Composition

² Feed subsystem: Ring focus reflector (Carbon fiber), Ka Band feed horn.

² Turntable subsystem: Azimuth/Elevation/Polarization 3 axis turntable.

² Servo control subsystem: ACU and ADU.

² Attitude acquisition subsystem: Digital compass, GPS.

² Receiver subsystem: High sensitivity beacon receiver.

Product Feature

² It can be easily installed on commercial vehicles, off-road vehicles, SUVs, MPVs and military cabins without penetrating the roof.

² it has excellent reliability, maintainability and environmental adaptability. It is suitable for use in field and urban road conditions.

² The automation level of the antenna reaches the advanced level, providing the “One-Key” function, and can be operated without training.

² The configuration of GPS has high precision and strong interference immunity ability of electronic compass, which ensures the environmental adaptability to the pointing function and the accuracy of the program pointing. The antenna is able to automatically point to the satellite without shielding and the vehicle can be safely parked.

² It has multiple protection functions such as automatic alarm, mechanical limit, software limit and so on. The antenna is safer to operate.

² Auto pointing time does not exceed 3min (RMS)

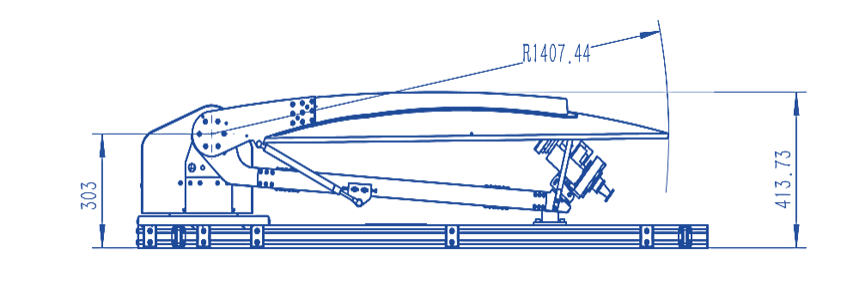

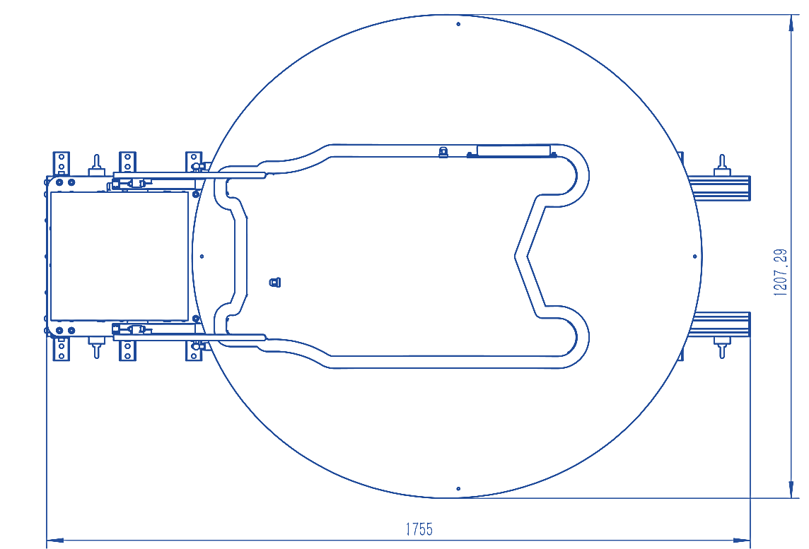

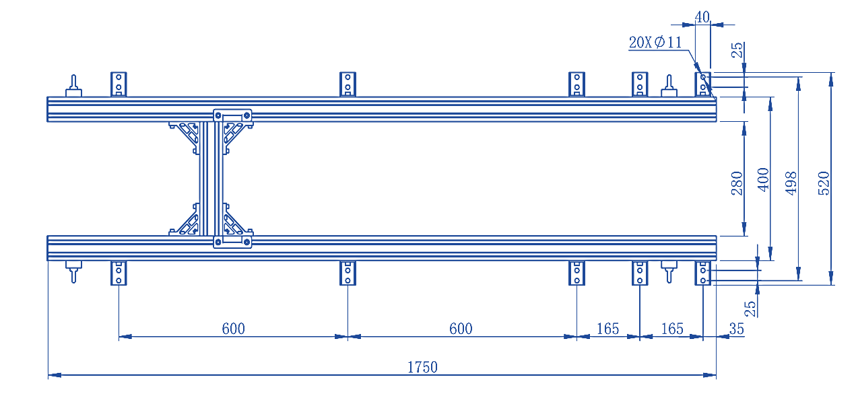

Technical Specifications

Product Name		1.2m Ka Band Driveaway Antenna				Feed Type	Offset
Equivalent Caliber			1.2m			Polarization	Circular
Frequency Range		Tx: 27.5 ~ 31 GHz		Gain (±0.5dB)		Tx: ≥49.1+20lg (f/29.25) dBi
		Rx: 17.7 ~ 21.2 GHz				Rx: ≥45.9+20lg (f/19.45) dBi
Axis Ratio		Rx: ≤ 1.3; Tx: ≤ 1.19		SWR		Rx: ≤ 1.3
Port Isolation		≥ 85 dB				Tx: ≤ 1.3
First Side Lobe		≤ -14 dB		Power Capacity		100 W
Interface		Rx: WR42; Tx: WR28
Range	Az	± 220 °		Speed	Az	0.1° ~ 6 °/s
	El	10° ~ 90°			El	0.1° ~ 6 °/s
	POL	N/A			POL(Ku)	0.1° ~ 3 °/s
Auto Acquire Time		≤ 3 min		Pointing Type		Beacon / DVB
Pointing Accuracy		Better than 1/8 3dB Beam Width		Positioning Mode		GPS / Beidou
Handset Parameters		19inch 1U chassis; screen: OLED; resolution 256x64
Operation Temperature		-40°C ~ +60 °C		Operation Wind Speed		20 m/s
Storage Temperature		-50°C ~ +70 °C		Survival Wind Speed		25 m/s
Humidity Requirement		95% (20 °C)		Protection Grade		IP65
Power Supply		220 VAC±10％, 50Hz±2 Hz		Power Consumption		≤ 350W (Exclude BUC)
System Weight		≤ 95 Kg (Exclude the BUC, Package and the accessories)
