Flyaway Antenna

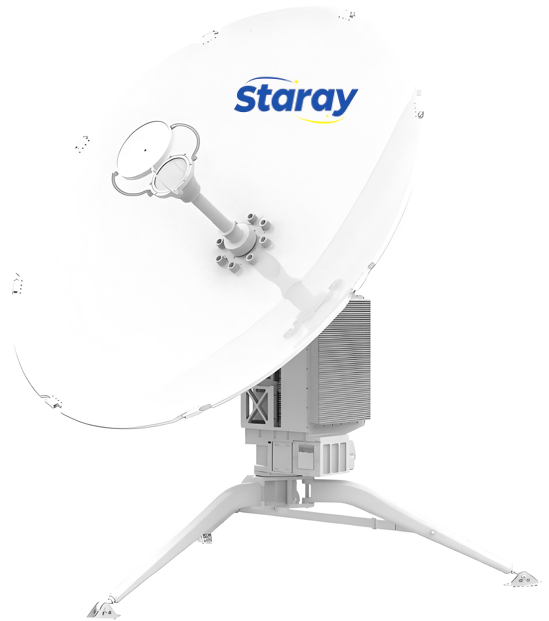

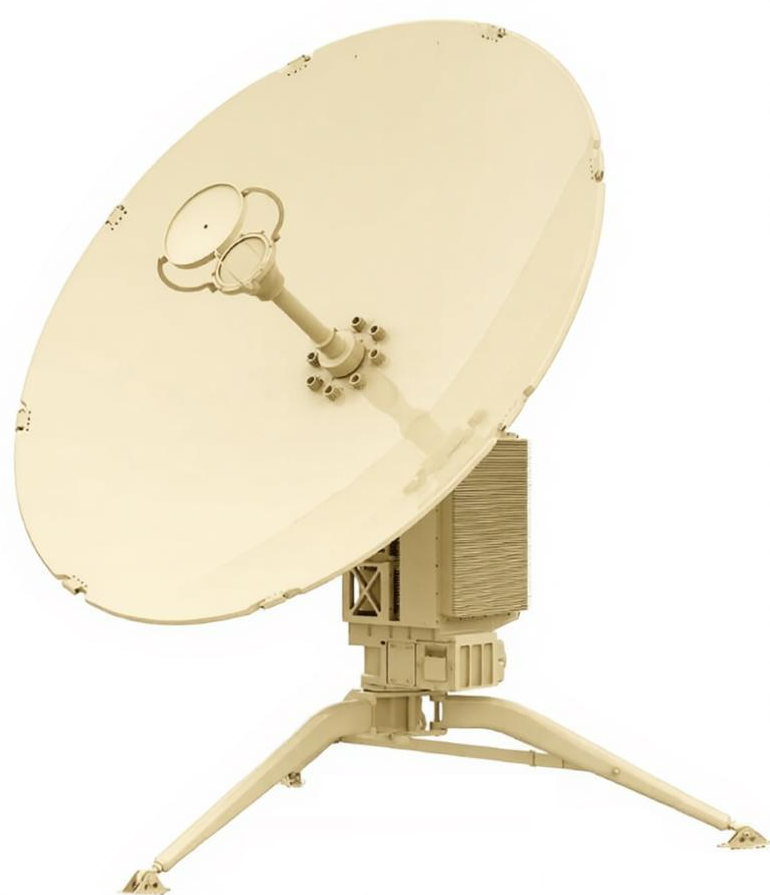

1.0m C Ku Ka Flyawy Antenna

Product Composition² Feed subsystem: Ring focus reflector (Carbon fiber), Ku Band feed horn,

Product Details

Product Composition

² Feed subsystem: Ring focus reflector (Carbon fiber), Ku Band feed horn, OMT, Filter and so on.

² Antenna control subsystem: Azimuth, Elevation, Polarization motor and so on.

² Digital tracking subsystem: Beacon receiver, GPS, DVB, WiFi module, angle sensor, ATPC control board and so on.

Product Feature

² The main support system of the antenna is carbon fiber material. The system realizes 60% carbon fiber, the material is more stable, the weight is lighter, the strength is higher, and it is more convenient for portable use.

² The antenna has the features of low sidelobe and high gain, which can meet the technical requirements of satellite companies. The bandwidth is not less than 6M.

² The antenna system is equipped with GPS positioning system, position detection system, polarization adjustment system, servo drive system, automatic protection system, high performance satellite beacon receiving system, Wi-Fi wireless control, intelligent control management software and so on.

Technical Specifications

Product Name		1.0m Ku Band Auto Flyaway Antenna				Feed Type	Ring Focus
Equivalent Caliber			1.0m			Polarization	Linear Polarization
Frequency Range		Rx: 10.95~12.75 GHz		Gain		Rx: ≥39.9+20lg(f/12.50) dBi
		Tx: 13.75~14.5 GHz				Tx: ≥41.0+20 lg(f/14.25) dBi
XPD		≥ 35 dB (On Axis)		SWR		Rx: ≤ 1.5
First Side Lobe		≤ -14 dB				Tx: ≤ 1.5
Tx-Rx Isolation		Tx-Rx: ≥ 85 dB		Power Capacity		100 W
		Rx-Tx: ≥ 40 dB		Controller		Mobile Phone APP
Interface		RF Interface: WR75, IF Interface: N-50K
Range	Az	± 200 °		Speed	Az	0.1°~3 °/s
	El	15°~90°			El	0.1°~3 °/s
	POL	± 90°			POL	0.1°~3 °/s
Auto Acquire Time		≤ 3 min		Pointing Type		Beacon/DVB
Pointing Accuracy		0.3dB (RMS)		Positioning Mode		Auto positioning, and Manual input
Operation Temperature		-40°C~+60 °C		Operation Wind Speed		11 m/s (Counterweight)
Storage Temperature		-50°C~+70 °C		Survival Wind Speed		18 m/s (Counterweight)
Humidity Requirement		95% (20 °C)		Protection Grade		IP65
Power Supply		220 VAC±10%, 50Hz±2 Hz		Power Consumption		≤ 80W (Exclude BUC, without wind)
System Weight		≤ 25 Kg (Exclude the BUC, Package and the accessories)
