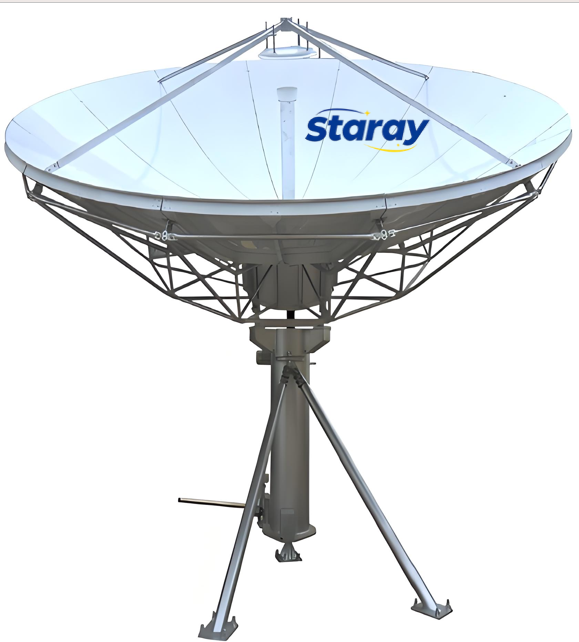

4.5m C Ku Ka Band Erath Station

Product Description Staray 4.5m antenna delivers exceptional high performance for tra

Product Details

Product Description

Staray 4.5m antenna delivers exceptional high performance for transmit/receive application in C, Ku, ka, X band in Tx/Rx 2 port or Rx 1 port with high gain, low noise and low microwave interference.

Staray 4.5m antenna offers a fine reflector design with a stretch formed double contoured panels, strong back struts and hub for easy of field alignment. The standard designed azimuth over elevation pedestal provides a cost-effective solution for ground or roof installation with high stiffness and stability, full orbital arc coverage and fine drive performance, and ensures the pointing and tracking accuracy.

The electrical performance is compliant with FCC and ITU-RS-580 sidelobe specifications and Intelsat, Eutelsat, INMARSAT, ASIASAT, APT and CHINASAT, etc requirement.

Product Specifications

Electrical Specification
Type	SR4500KU
	Ku-Band
	Rx	Tx
Operating Frequency, GHz	10.7~12.75	13.75~14.5
Gain, Mid-band, dBi	53.2	54.3
Polarization	Linear
XPD (on Axis), dB	30	30
VSWR	1.3	1.3
Antenna Noise Temperature	Elevation 10° 20° 50°	52K 41K 37K
Typical G/T (El=25°	32.3dB/K (70K LNA)
3 dB Beam Width, Mid-band	0.37°	0.33°
Power Capability, KW		2
Feed Interface	WR-75	WR-75
Feed Insertion Loss, dB	0.25	0.2
solation, Rx to Tx, dB	85dB
Isolation, Tx to Rx, dB	85dB
Side lobe	≤-14 dB
Mechanical Specification
Antenna Diameter	4.5 m
Antenna Type	Ring Focus
Antenna Material	High Quality Aluminium
Surface Accuracy (RMS)	≤0.5mm
Antenna Pointing Range	Azimuth	±85°, 0°~340° (optional)
	Elevation	0°~ 90° (continuous)
	Polarization	180° (continuous)
Motor Drive System	Pointing accuracy (El. and Az.)	0.03°
	Max Speed in El. and Az. Axes	7°/sec
Drive Mode	Manual or Motorized
Antenna Reflector Material	Aluminum Alloy
Finish of steel parts	Hot dipped Zinc
Environmental Specification
Operational Wind	72km/h gusting to 150km/h
Survival Wind	216km/h
Temperature	–40℃~+60℃
Relative Humidity	100%
Solar Radiation	1135Kcal/h/m²
Seismic (Survival)	0.3g(H), 0.15g(V)
Ice Loading	13mm Operational; 25mm Survival
