1.2m C Ku Ka Band Erath Station
Product Details

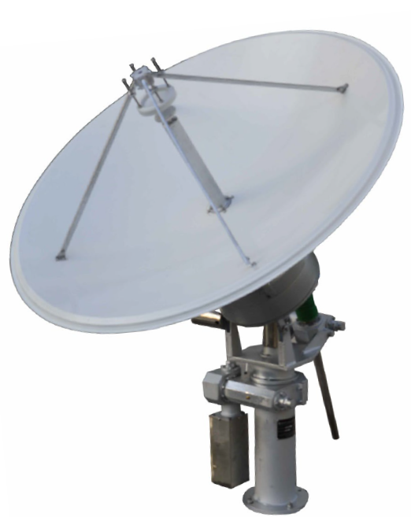

Staray 1.2m antenna delivers exceptional high performance for receive application in C, Ku, ka, X band in 2 port with high gain, low noise and low microwave interference.

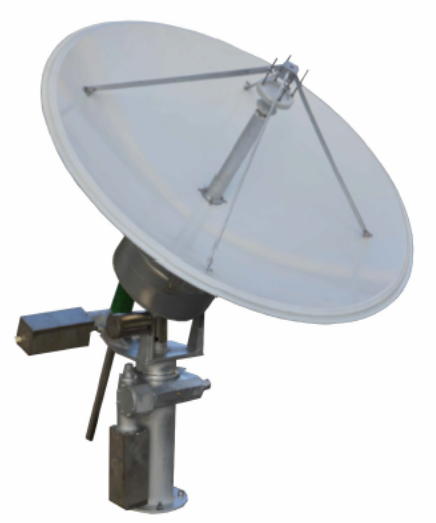

Staray 1.2m antenna offers a fine reflector design with a stretch formed double contoured panels, strong back struts and hub for easy of field alignment. The standard designed azimuth over elevation pedestal provides a cost-effective solution for ground or roof installation with high stiffness and stability, full orbital arc coverage and fine drive performance, and ensures the pointing and tracking accuracy.
The electrical performance is compliant with FCC and ITU-RS-580 sidelobe specifications and Intelsat, Eutelsat, INMARSAT, ASIASAT, APT and CHINASAT, etc.
Product Specifications
Electrical Specification | ||
Type | SR1200KU | |
Ku-Band | ||
Rx | Tx | |
Operating Frequency, GHz | 10.7~12.75 | 13.75~14.5 |
Gain, Mid-band, dBi | 41.5 | 42.3 |
Polarization | Linear | |
XPD (on Axis), dB | 30 | 30 |
VSWR | 1.3 | 1.3 |
Antenna Noise Temperature | Elevation 10° 20° |
50 K 37k |
3 dB Beam Width, Mid-band | 0.81° | 0.56° |
Power Capability, KW | 5 | |
Feed Interface | WR-75 | WR-75 |
Feed Insertion Loss, dB | 1.7 | 1.2 |
solation, Rx to Tx, dB | 85dB | |
Isolation, Tx to Rx, dB | 85dB | |
Side lobe | ≤-14 dB | |
Mechanical Specification | ||
Antenna Diameter | 1.2m | |
Antenna Type | Ring Focus | |
Antenna Material | High Quality Aluminium | |
Surface Accuracy (RMS) | ≤0.3 mm | |
Antenna Weight | 80kg | |
Antenna Pointing Range | Azimuth | 340° (Continuous) |
Elevation | 0~90° (Continuous) | |
Polarization | 180° (Continuous） | |
Environmental Specification | ||
Operational Wind | 72km/h gusting to 97km/h | |
Survival Wind | 216 km/h | |
Temperature | Indoor | -10℃~ +50℃ |
Outdoor | –20℃~+50℃，–40℃~+50℃ | |
Relative Humidity | 100% | |
Solar Radiation | 1135Kcal/h/m² | |
Seismic (Survival) | 0.3g(H), 0.15g(V) | |
Ice Loading | 13mm Operational; 25mm Survival | |
Features
² High quality aluminum reflector panels and galvanized steel backup structure.
² C, KU, KA, X Band available.
² Galvanized steel elevation over azimuth pedestal.
² Fixed foundation and non-penetrating foundation optional for wider choice.
² Survives 125 mph winds in any position.
² Meets or exceeds CCIR 580 Requirements.
² High G/T, excellent pattern characteristic.
² CP/LP switchable feed.
² Hot dip zinc steel pedestal, hub & back struts.
² Galvanized stainless steel fasteners.
² Foundation hardware kit provided.
² Package suitable for air, ocean land transportation.
Antenna Accessory
² Limit Switches
² Foundation hardware Kit
² Grounding Kits Cable - Mounting kits
² Cable mounting kits
² ODU Support Kits
² Factory Feed System Testing and Documentation
² Ocean /Air/land Transport Packing
Options
² L, S, C, X, Ku and DBS-band feed configurations.
² 800MHz bandwidth is available.
² Two Rx port in linear or circular polarized feeds.
² Motorization kits.
² Feed blower or deicing with automatic controls.
² Lightning Rod Kits.
² Non-penetrating mount.
² Integrated LNB or LNA systems.
² HPAs, converters and M&C systems.
² Turnkey installation & testing.
